VPC

• Stands for Virtual Private Cloud.
• Isolates resources within it.

• When we are creating one we need to specify the IPv4 CIDR block.

  • E.g. 10.0.0.0/24

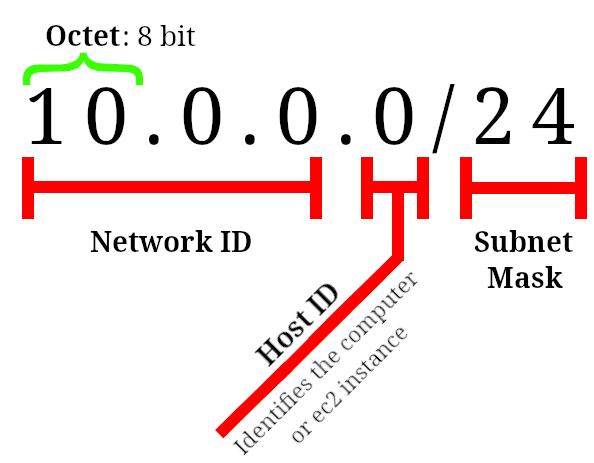

  • Each IP address consists of: network ID, host ID, subnet.



  • Classful addresses: Their Network ID part is fixed and organizations could buy different classes:

    1. Class A: has 8 network prefix bits. E.g. 44.0.0.1, where 44 is Network ID & 0.0.1 is the Host ID.
    2. Class B: has 16 network prefix bits. E.g. 44.16.0.22, where 44.16 is Network ID & 0.22 is the Host ID.
    3. Class C: has 24 network prefix bits. E.g. 44.16.21.31, where 44.16.21 is Network ID & 31 is the Host ID.

    Then we entered the era of classless IP addresses where the Host ID could vary by changing the subnet mask. They can alter the ratio between Network ID and Host ID.

  • Classless Inter-Domain Routing is an IP address allocation method that improves data routing efficiency on the internet.

    So we use variable length subnet masking (VLSM) to return the value of a network address, from the IP address, by turning the host address into zeroes. In other words we are breaking down an IP address space into subnets of various sizes.

  • You can check the range of IP that you’ll get by going to CIDR.xyz.

  But if these explanations are too hard to understand right away I guess you could also interpret the subnet mask as an indicator that determines which part of the Network ID should change.

• You can assign an EIP¹ to your EC2 instance.
• Linked to a region.

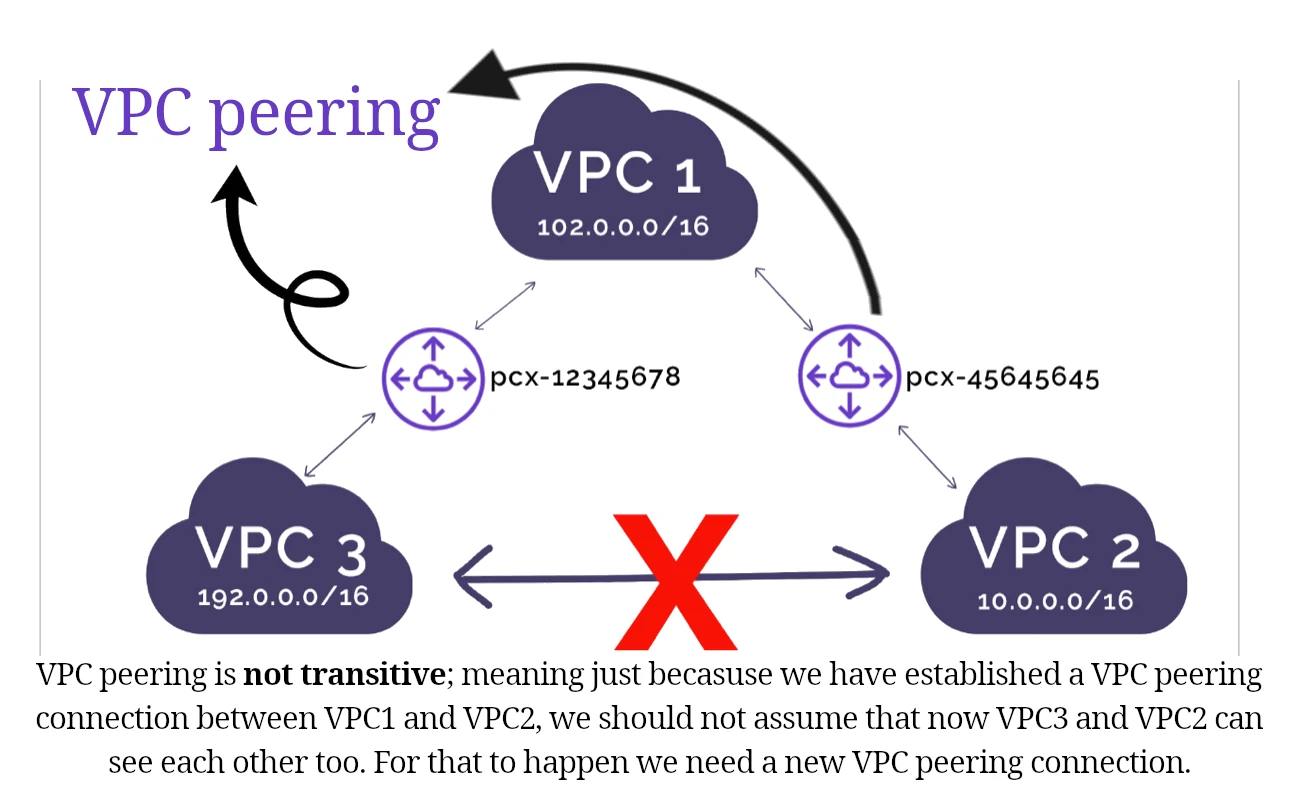

• VPC peering connection:

  • A networking connection between two VPCs that enables you to route traffic between them privately.
  • Crosses regions/accounts.



[!IMPORTANT]

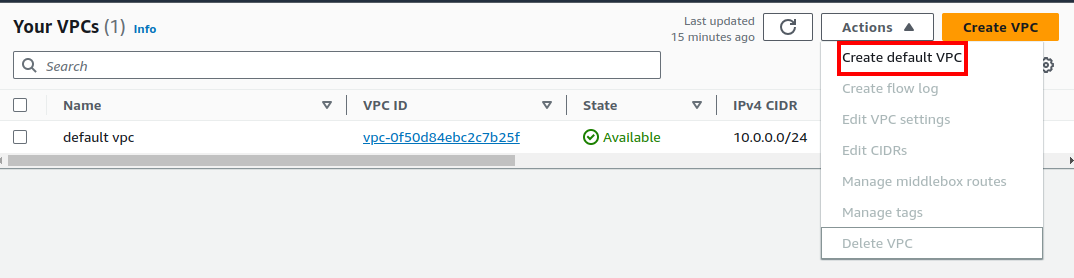

By clicking on “Create VPC” you’re gonna create a new VPC which is not the default VPC. If you’ve deleted your default VPC you need to create a new default VPC by clicking on “Create default VPC” in “Actions”* dropdown.

Uncheck all the selected VPCs in the VPC’s table to see “Create default VPC” option.

Classful VS Classless IP addresses

Classful	Classless
Inflexible (Waste of IP address spaces)	Flexible
Cannot combine networks of different classes	Can combine networks of different classes
Less efficient since all devices are in one huge network	route data packets to the respective device based on the indicated subnet

[!TIP]

AWS charges you for every single public IPv4 you’re using. BUT you can use IPv6 instead which is free. JFI: all IPv6 are public.

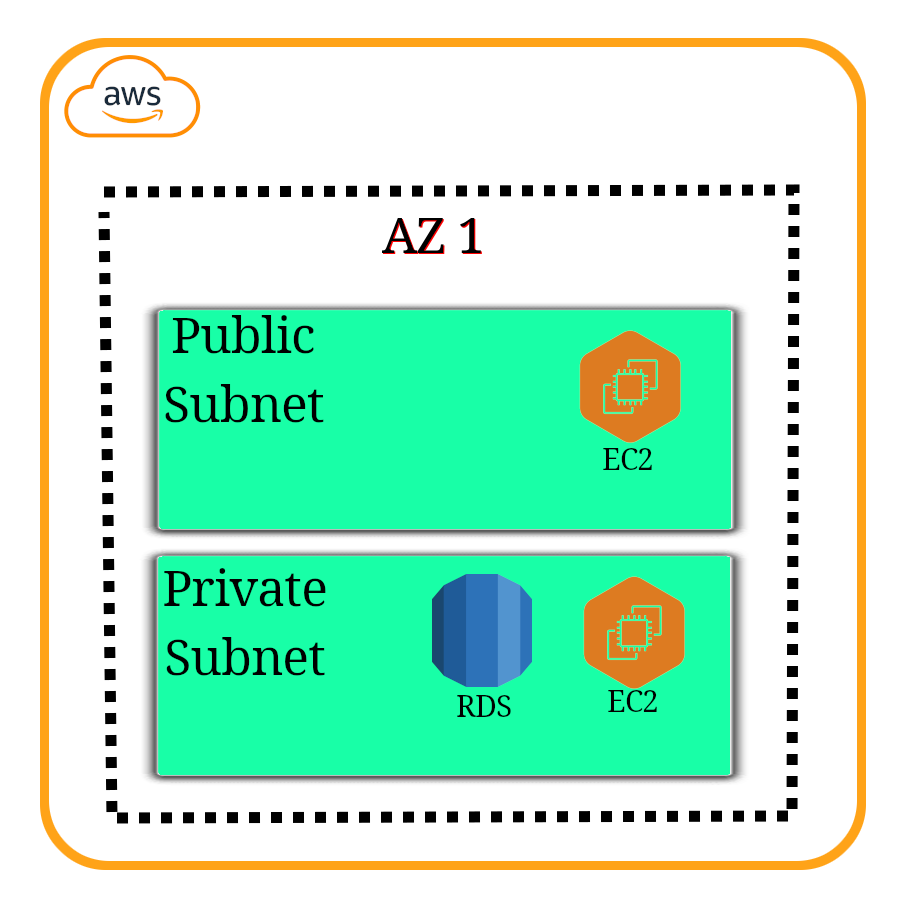

Subnet

Next stop after creating VPC is to create subnets.

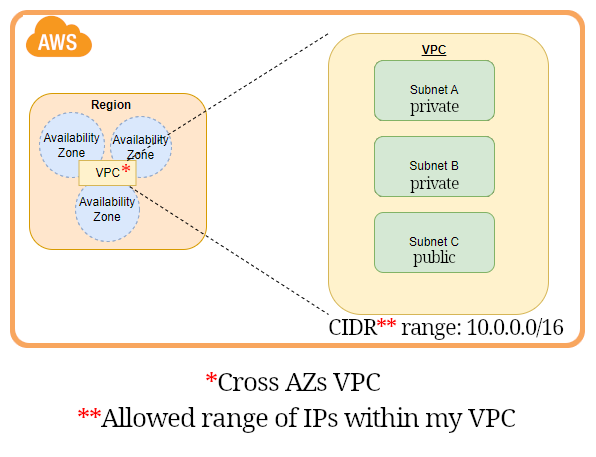

• We will use subnets to partition our VPC.
• It is a defined set of IP addresses.

• They can be public or private.

  • We usually create 2 for each, placed in different AZs (for hight-availability).
  • And you might wanna have more private IP addresses.



• Each subnet must be:
  1. Associated to a VPC.
  2. In an AZ.
  3. With a specific non conflicting CIDR.

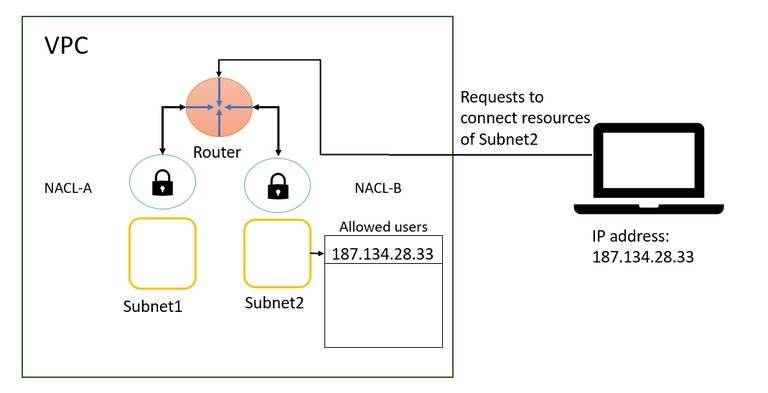

NACL

• AKA Network ACL.
• Stands for Network Access Control List.
• Virtual firewall around subnets.
• Stateless: You need to define outbound rules to let requests out (implying that you do not have access to outside world unless you explicitly define it).
• Can be used to block an IP address at subnet level.
• ALLOW or DENY rules.

Route tables

Next step is enabling our EC2 instance to connect to the internet.

• Subnets need to know how they can connect to other networks (route to it).
  • E.g. Internet, another subnet, etc.
• Each route table belongs to one VPC.
  • After creating a subnet we need to explicitly associate it to a subnet.
• By default when you create a new VPC AWS creates a main default route table for us.

[!NOTE]

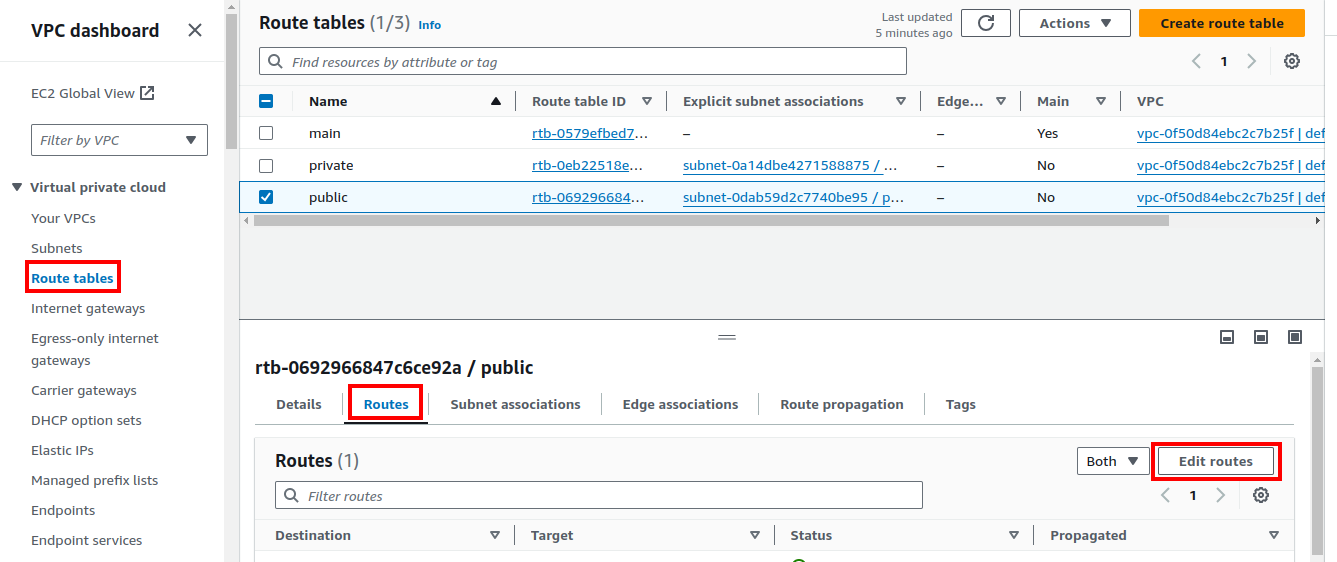

After creating the route table you need to create an internet gateway and add it to the public route table as a route so that your EC2 instances can access internet.

Gateway

• A gateway connects your VPC to another network.

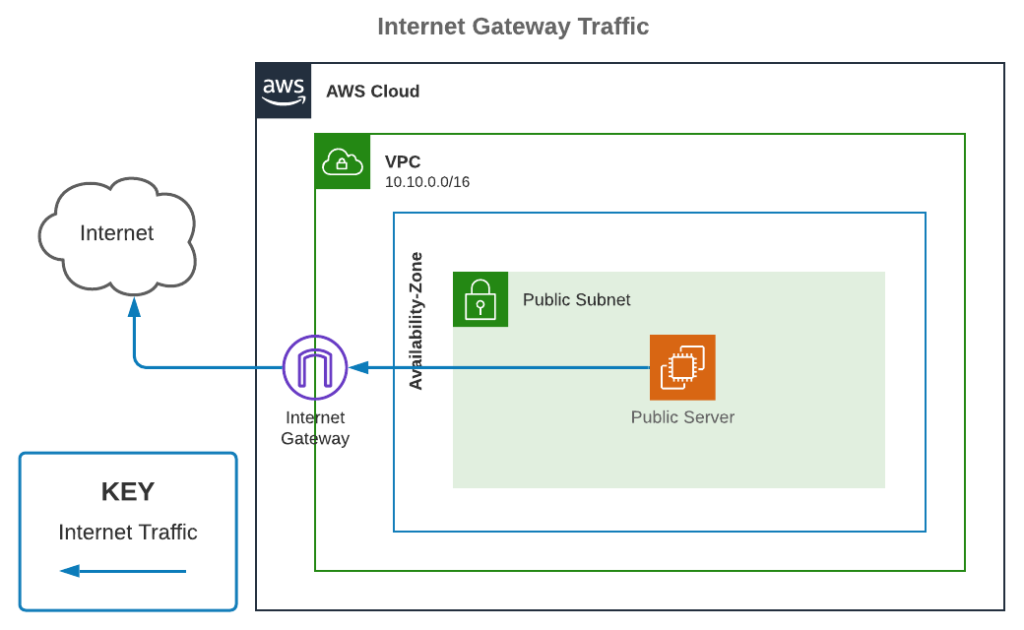

Internet gateway

• It’s a special gateway. As its name implies it connects our VPC to the internet.



• How it works:
  1. Create a new internet gateway.
  2. We attach it to our VPC.
  3. Then in subnet’s route table we can add it as a route, its type is Internet gateway.
• It is responsible for Network Address Translation (NAT).

So now your EC2 instances who are within the public subnet must be reachable through internet. Now we can work on our private subnet. It needs to access internet, remember we said that NACL is stateless. Thus we need to create a NAT gateway.

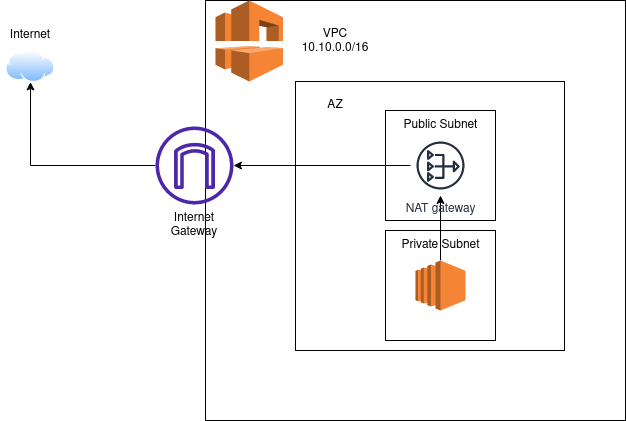

NAT gateway

• Manged by AWS.
• Stands for Network Address Translation.
• EC2 instances who are placed in a private subnet need to access internet.

  [!NOTE]

  They are not publicly accessible. But they can and need to have access to the internet.

• So we create a NAT gateway in a public subnet and route private subnet requests to it.
• It needs an EIP¹ to work.
  • EIP must match the network border group of the AZ that you’re launching the public NAT gateway into. You can see the network border group for the subnet’s AZ by viewing the details of the subnet.

[!NOTE]

After you’ve created the NAT gateway you still need to add it as a route to your private subnet.

[!TIP]

NAT instance: we can run a self-managed version of NAT.

Security Group

[!NOTE]

Learn about it security groups here.

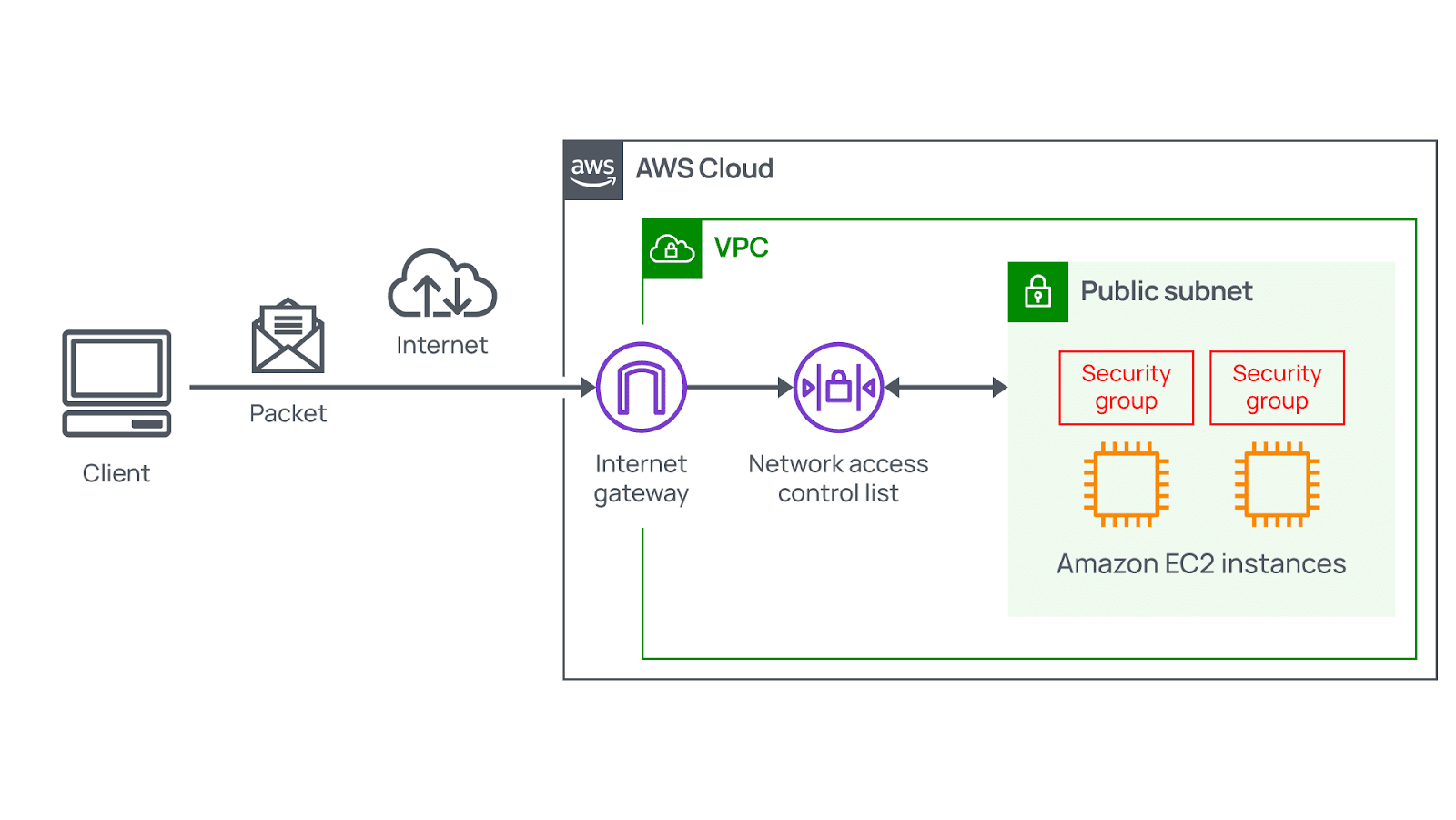

Security group VS NACL

	Security Group	NACL
Works at	EC2 instance level.	Subnet level.
Supports	ALLOW rules.	ALLOW/DENY rules.
Connection tracking	Stateful: they automatically allow return traffic that corresponds to an allowed inbound connection.	Stateless: they do not track the state of connections, thus explicit rules for both inbound and outbound traffic are necessary.
Configuring it	You must explicitly say it.	It is automatically applied (Each instance is within a subnet).

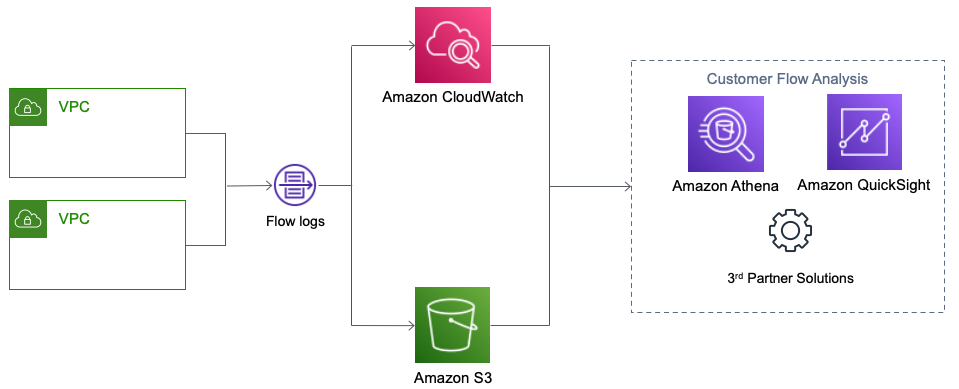

VPC flow logs feature

• Log network traffics.
  • It is not limited to EC2 instances and your RESTful APIs essentially.
  • Can be AWS managed services such as: RDS, Aurora, ElastiCache, Elastic load balancer, etc.
  • Store them in S3, CloudWatch logs, Kinesis data firehouse.
• Identify patterns, threats, and risks across your VPC network.

VPC endpoints feature

• Connect to AWS using a private network (AWS’s network).
• Lower latency.
• Enhanced security.

Type	AWS service	Infographic
Gateway	S3. DynamoDB.
Interface	Rest of AWS services

• Create a VPC endpoint of type .

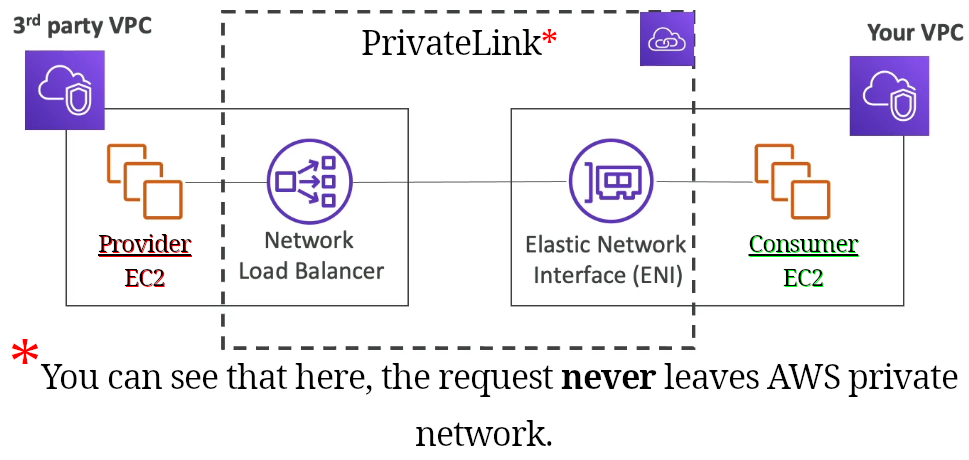

PrivateLink

• Connect a service to another service without <table style="display:inline"><tr><td>VPC peering</td></tr><tr><td>Internet gateway</td></tr><tr><td>NAT</td></tr><tr><td>route table</td></tr></table>, instead you’ll connect directly & privately.

• On the consumer’s side we need an Elastic Network Interface (ENI) and on the service provider’s side an Network Load Balancer.



VPN

• Hybrid cloud.

• You wanna connect your on-premises data center to your AWS VPC.

  • Options we’ve got:

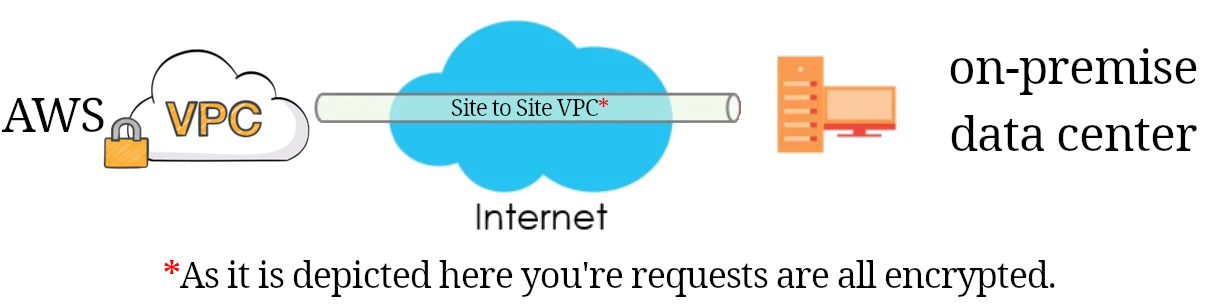

    1. Site to site VPN:

       • It is an encrypted connection between these two parties over the internet.
       • In less than 5 minutes you can run.
       • In your on-premise data center you need a “customer gateway (CGW)”
       • And in AWS we need “virtual private gateway (VPG)”.

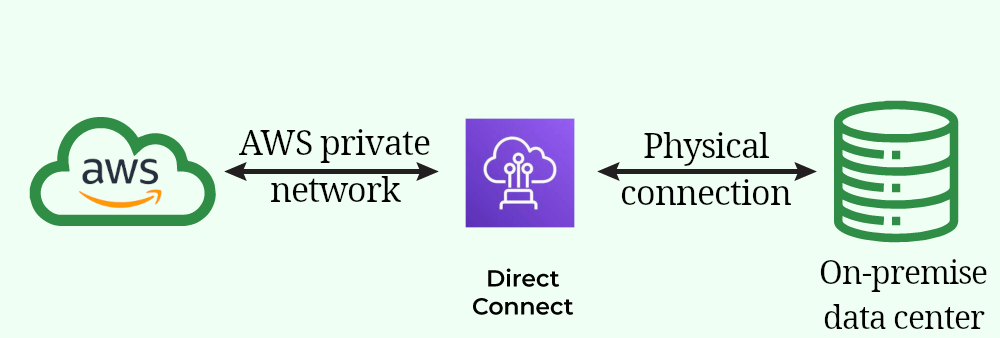

    2. Direct connect(DX):

       • A real physical connection between on-premise data center and AWS.
       • Needs at least one month to establish it.



  • These two question can help you to pic one
    how urgent do we need it?
    does it need to be 100% private?

Client VPN

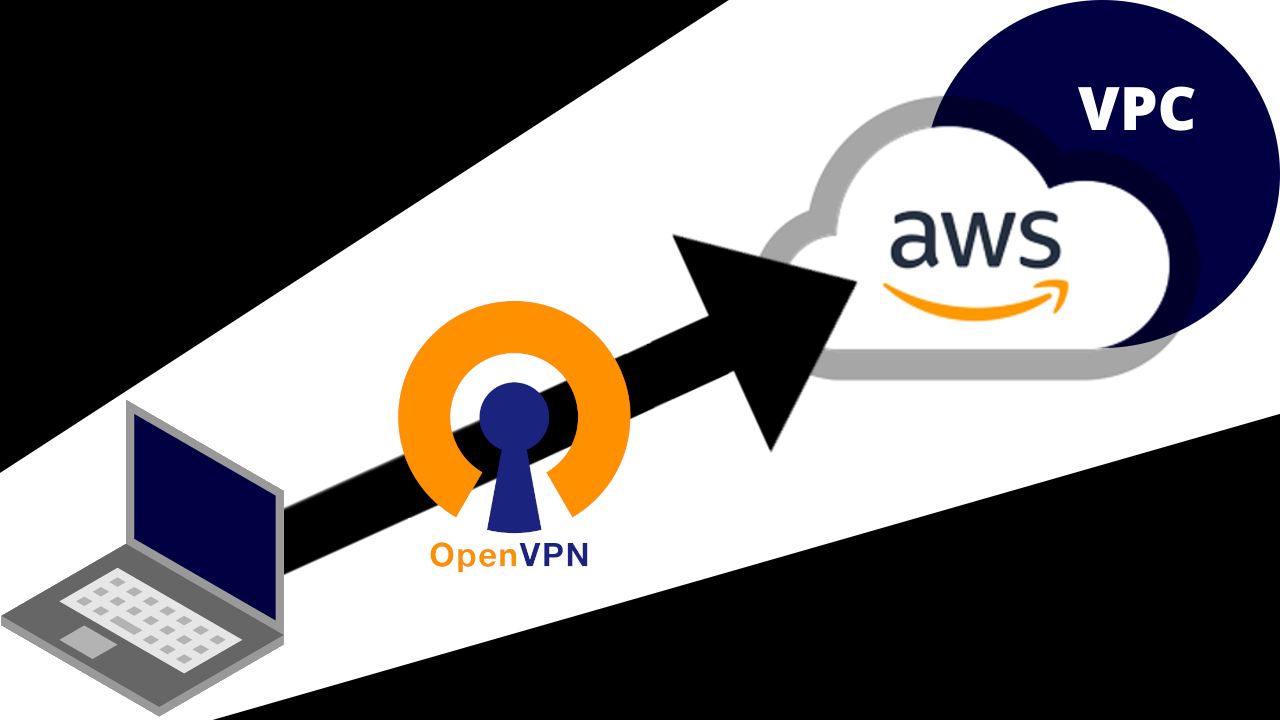

• Connect to your VPC privately with OpenVPN.

References

-ref

Footnotes

1. Elastic IP. A fixed public IP dedicated to our EC2 instance or NAT gateway. ↩ ↩²
