Query Depth

• A defense mechanism against unbounded deeply nested GraphQL queries.
• We need to limit the total depth of each operation.
• My current implementation in apps/complexity + ComplexityPlugin is doing just that but it lacks taking into account the Connection pagination (learn more here).
• Deciding when a GraphQL query is “too complex” is a nuanced and subtle art.

@escape.tech/graphql-armor

[!NOTE]

At first I thought to use graphql-depth-limit-ts, but then I found @escape.tech/graphql-armor. It offers features provided by graphql-query-complexity and graphql-depth-limit-ts. So I am down :joy:.

I am gonna try this lib with type-graphql. The e2e tests + app: apps/depth and apps/depth-e2e.

1. pnpm install graphql type-graphql reflect-metadata typeorm pg @escape.tech/graphql-armor


2. nx g @nx/node:app apps/depth --framework express --bundler esbuild


3. Configure your TypeORM and type-graphql backend.
4. Configure your @escape.tech/graphql-armor with your Apollo Server (learn more).

For example this query with that config will work:

GraphQL Query	Config
```graphql query { businesses { edges { cursor node { id name customers { id shopAt { id customers { id } } } } } } } ```	```ts new ApolloArmor({ maxDepth: { enabled: true, ignoreIntrospection: true, n: 7, flattenFragments: true, }, costLimit: { enabled: true, depthCostFactor: 1.5, objectCost: 2, scalarCost: 1, ignoreIntrospection: true, flattenFragments: true, maxCost: 100, }, }); ```

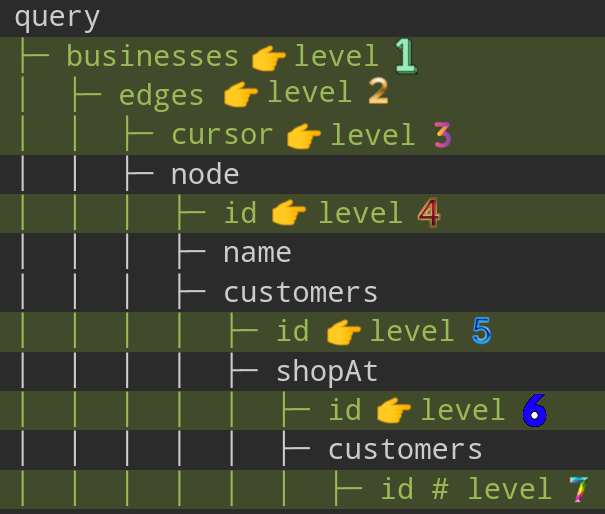

• We have 7 as the maximum level of nestedness. That corresponds to the n: 7 in our maxDepth.



• After that we can take a look at how it is calculating our GraphQL query’s cost, we have said depthCostFactor should be 1.5, objectCost should be 2, and finally scalarCost is 1. Let’s first break down our query

  Cost calculation formula: objectCost + (child complexity * depthCostFactor). You can see how I know that this lib at the time of writing this doc is using this formula here.

  Depth	Field	Type	Base Cost	Child Cost * Depth Factor	Total Cost
  0	query	Object	n/a	n/a	n/a
  1	businesses	Object	2	7 * 1.5	12.5
  2	edges	Object	2	6 * 1.5	11
  3	cursor, node	Scalar + Object	1 + 2	9 * 1.5	16.5
  4	id, name, customers	Scalar + Scalar + Object	1 + 1 + 2	6 * 1.5	13
  5	id, shopAt	Scalar + Object	1 + 2	3 * 1.5	7.5
  6	id, customers	Scalar + Object	1 + 2	1 * 1.5	4.5
  7	id	Scalar	1	0	1
  Cost Of Executing This Query					66
